      Introduction

      The Workflow Management Skill creates, edits, enables, and diagnoses NocoBase workflows — from trigger selection to node chain building to execution result troubleshooting, covering the complete workflow lifecycle.

      Installation

      npx skills add nocobase/skills --skill nocobase-workflow-manage -y

      Capabilities

      Can do:

      • Create workflows: Select trigger types and add processing nodes one by one
      • Edit workflows: Modify trigger configuration, add/remove/update nodes, move and copy nodes
      • Version management: Versions that have been executed will automatically create a new revision without affecting historical records
      • Enable and manually execute workflows
      • Diagnose failed executions: Locate failed nodes and error messages

      Cannot do:

      • Cannot design data models (use the Data Modeling Skill)
      • Cannot install MCP or handle environment issues (use the Installation & Upgrade Skill)
      • Cannot delete an entire workflow (a high-risk operation requiring separate confirmation)
      • Cannot fabricate node types or trigger types

      Prompt Examples

      Scenario A: Creating a new workflow

      Help me set up a workflow that automatically deducts product inventory after an order is created

      The Skill will first confirm the trigger type and node chain design, then create them step by step after confirmation.

      20260419234303

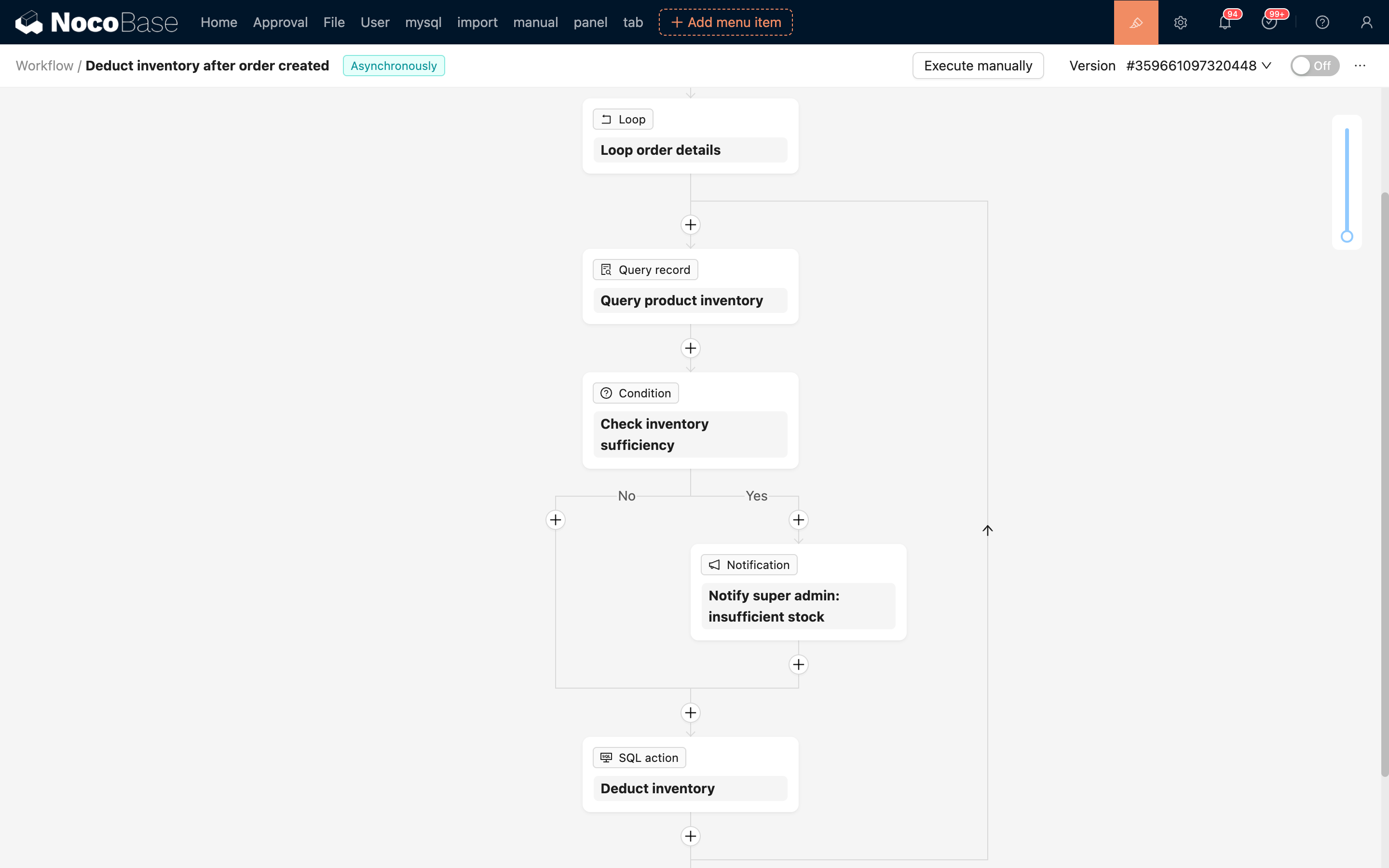

      Scenario B: Editing an existing workflow

      In the order creation workflow, add a notification node when inventory is insufficient, sending a message to the administrator

      If the current version has been executed, a new revision will be created first before editing, without affecting historical execution records.

      20260419234419

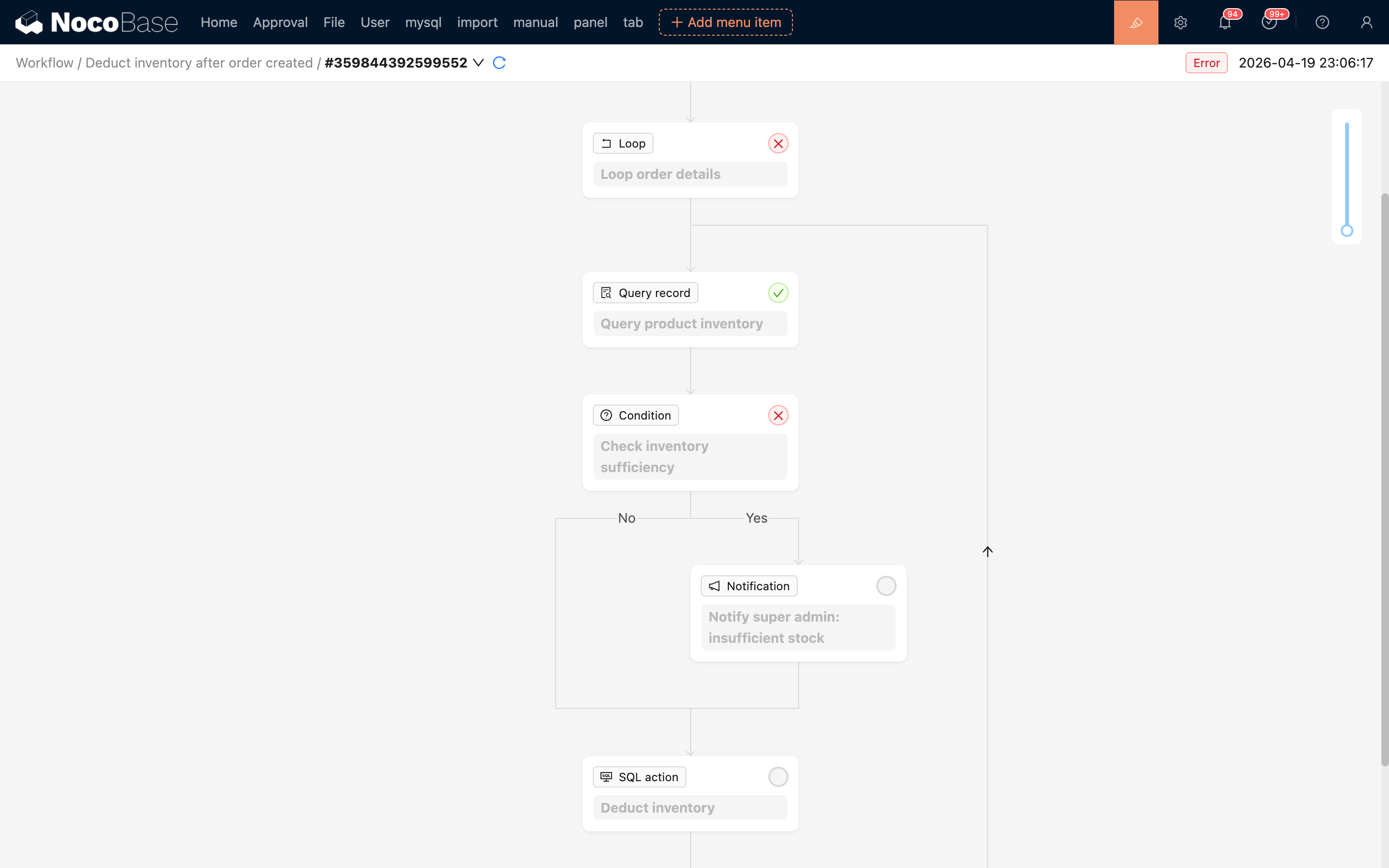

      Scenario C: Diagnosing execution failures

      The order creation inventory deduction workflow failed on its last execution, help me find out what went wrong

      It will find the most recent failed execution, locate the failed node and error message, and provide fix recommendations.

      20260419234532

      Scenario D: Analyzing or summarizing workflow logic

      Help me analyze the processing logic of the "order creation inventory deduction" workflow

      Output:

      # Workflow Analysis: Order Creation & Inventory Deduction

## Workflow Overview
**Type:** Order Creation and Inventory Deduction

### Trigger
- **Type:** Action-based event
- **Trigger Condition:** Triggered when a "Create" operation is performed on the `orders` collection (Global trigger).
- **Associated Data:** Carries `details` (order line items) as the payload.
- **Execution Mode:** Asynchronous

---

### Node Execution Chain

**[Trigger] Order Created**
        │
        ▼
**[1] Loop (Looping through order details)**
    *   **Target:** `{{$context.data.details}}`
    *   *Action: Iterating through each line item:*
        │
        ▼
    **branchIndex=0 (Loop Body)**
        │
        ▼
    **[2] Query Product Inventory (Query)**
    *   **Collection:** `products`
    *   **Filter:** `id = {{$scopes.5u6lsjzf8vh.item.productId}}`
        │
        ▼
    **[3] Check Sufficient Inventory (Condition)**
    *   **Engine:** `formula.js`
    *   **Expression:** `{{$jobsMapByNodeKey.n6rf8lf2lum.inventory}} < {{$scopes.5u6lsjzf8vh.item.quantity}}`
        │
        ├── **YES (branchIndex=1, Insufficient Stock, Condition is TRUE):**
        │   ▼
        │   **[4] Notify Super Administrator (Notification)**
        │   *Sends notification to users with the 'root' role, including:*
        │   *Product Name, Product ID, Current Inventory, and Requested Quantity.*
        │
        └── **NO (branchIndex=0, Sufficient Stock, Empty Branch)**
        │
        ▼
    **[5] Deduct Inventory (SQL)**
    *   **Statement:** `UPDATE products SET inventory = inventory - :quantity`

---

### Key Logic Summary

| Phase | Description |
| :--- | :--- |
| **Trigger** | Upon order creation, the system initiates the workflow with the complete list of order details. |
| **Loop** | Processes each line item individually; each item corresponds to a specific product and its purchase quantity. |
| **Query** | Retrieves the current inventory level for the specific product using `productId`. |
| **Condition** | Evaluates if `inventory < quantity` (i.e., checking for insufficient stock). |
| **Notification** | If stock is insufficient, an in-app message is sent to users with the 'root' role. |
| **Deduction** | Performs a direct SQL update to subtract inventory; this step executes regardless of the condition outcome. |

---

### ⚠️ Potential Design Issues

The `downstreamId` of the Condition node points to the "Deduct Inventory" node, meaning both branches (Sufficient Stock / Insufficient Stock) converge to execute the deduction. This results in the following behavior:

- **Sufficient Stock** $\rightarrow$ Inventory is deducted (Normal). ✓
- **Insufficient Stock** $\rightarrow$ Administrator is notified, **and then** inventory is still deducted (which may result in negative stock).

**Analysis:** This could either be an intentional "allow overselling with warning" design pattern, or a logical error (where the system should have prevented deduction if stock was insufficient). This requires verification with the business stakeholders to confirm the intended logic.

---

### Current Status

- **Enabled:** `false` (Disabled)
- **Execution History:** Has been executed 1 time.
- **Version Control:** The version is currently frozen. To make modifications, a new version must be created.

      FAQ

      Why isn't the workflow triggering after creation?

      Newly created workflows are disabled by default (enabled: false). You need to confirm the trigger configuration is correct before manually enabling it.

      Will editing a workflow affect historical execution records?

      No. If the current version already has execution records, the Skill will automatically create a new revision. Historical execution records are bound to the old version and are not affected.
